Phase Axis Formatters & Locators#

One-stop guide to format Matplotlib axes in multiples of π for phase/radian data using PiFormatter, PiLocator, and setup_phase_axis.

What & Why#

Phase data (e.g., wrapped interferometric phase) is naturally expressed in radians. Displaying ticks as clean multiples/fractions of π improves readability over raw decimal radians. This tutorial shows how to format axes in π units for clearer phase plots.

Quick Start#

3 steps: import, plot, apply π-based formatter/locator.

import numpy as np
import matplotlib.pyplot as plt
from faninsar.plots.formatters import PiFormatter, PiLocator, setup_phase_axis

x = np.linspace(-np.pi, np.pi, 200)
fig, ax = plt.subplots(figsize=(5, 3))
ax.plot(x, np.sin(x), label="sin(x)")

# Option A: manual control
ax.xaxis.set_major_locator(PiLocator(base=0.5))  # π/2
ax.xaxis.set_major_formatter(PiFormatter(denominator=4))

# Option B: convenience helper (uncomment to try)
# setup_phase_axis(ax.xaxis, base=0.5, denominator=4)

ax.set_xlabel("Phase (radians)")
ax.set_ylabel("sin(x)")
ax.legend()
fig.tight_layout()
plt.show()

../../_images/0c70766addec274ddbe9b9be7c5ec71222468d692e1c2976abec687e867d2a22.png

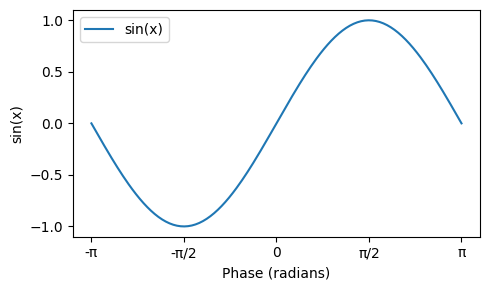

Expected: x-axis ticks like −π, −π/2, 0, π/2, π.

Core Concepts#

PiFormatter converts radians into multiples of π; supports plain text and LaTeX mathtext.
PiLocator places ticks at base×π intervals (e.g., 0.25 → π/4).
setup_phase_axis applies both to a given axis (e.g., ax.xaxis or ax.yaxis).

Parameters & Options#

PiFormatter

denominator (int, default 4): max fraction denominator (e.g., 3π/4). Larger → finer fractions.
symbol (str | None): override π symbol (e.g., "pi"). If latex=True and None → \pi.
use_unicode (bool, default True): use π vs pi when latex=False.
latex (bool, default False): render labels with mathtext (e.g., $\frac{\pi}{2}$ ).

PiLocator

base (float, default 0.5): spacing in multiples of π; common values: 1.0 (π), 0.5 (π/2), 0.25 (π/4).

# Micro-examples for PiFormatter
from faninsar.plots.formatters import PiFormatter

print("Default (π symbol):", PiFormatter()(np.pi/2))           # 'π/2'
print("ASCII symbol:", PiFormatter(symbol="pi")(np.pi))     # 'pi'
print("LaTeX:", PiFormatter(latex=True)(-np.pi))                 # '$-\pi$'
print("Finer fraction:", PiFormatter(denominator=8)(3*np.pi/8))  # '3π/8'

Default (π symbol): π/2
ASCII symbol: pi
LaTeX: $-\pi$
Finer fraction: 3π/8

Extended Examples (3)#

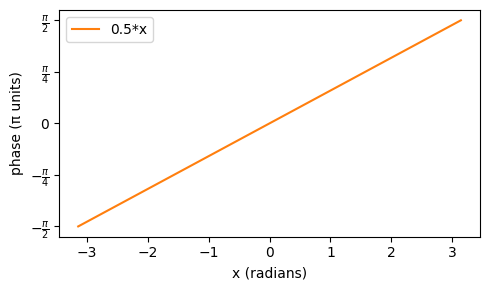

1) Y-axis as phase (LaTeX labels)#

x = np.linspace(-np.pi, np.pi, 200)
y = 0.5 * x  # linear ramp in radians

fig, ax = plt.subplots(figsize=(5, 3))
ax.plot(x, y, color="tab:orange", label="0.5*x")
setup_phase_axis(ax.yaxis, base=0.25, denominator=4, latex=True)
ax.set_xlabel("x (radians)")
ax.set_ylabel("phase (π units)")
ax.legend()
fig.tight_layout()
plt.show()

../../_images/d22983e2e6752d7a0992f00a67ef2ae104ccb12f3801c8e07e9170682ec0476a.png

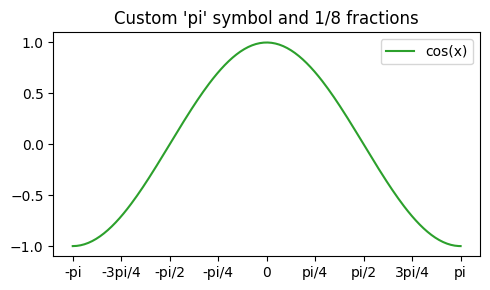

2) Custom symbol and fine fractions#

x = np.linspace(-np.pi, np.pi, 200)
fig, ax = plt.subplots(figsize=(5, 3))
ax.plot(x, np.cos(x), color="tab:green", label="cos(x)")
ax.xaxis.set_major_locator(PiLocator(base=0.25))   # π/4
ax.xaxis.set_major_formatter(PiFormatter(denominator=8, symbol="pi"))
ax.set_title("Custom 'pi' symbol and 1/8 fractions")
ax.legend()
fig.tight_layout(); plt.show()

../../_images/36ae8cc351eba82c0607ce9c81f57412e318babcdec93c987fae2b390c67d824.png

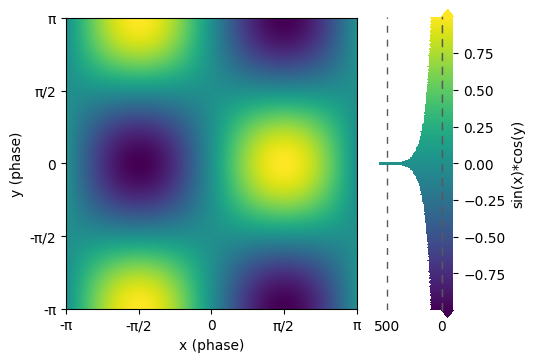

3) Both axes as phase#

x = np.linspace(-np.pi, np.pi, 200)
y = np.linspace(-np.pi, np.pi, 200)
X, Y = np.meshgrid(x, y)
Z = np.sin(X) * np.cos(Y)

fig, ax = plt.subplots(figsize=(5, 4))
im = ax.imshow(Z, extent=[x.min(), x.max(), y.min(), y.max()], origin="lower")
setup_phase_axis(ax.xaxis, base=0.5, denominator=4, latex=False)
setup_phase_axis(ax.yaxis, base=0.5, denominator=4, latex=False)
ax.set_xlabel("x (phase)")
ax.set_ylabel("y (phase)")
fig.hist_colorbar(Z, im, ax=ax, extend="both", label="sin(x)*cos(y)")
plt.show()

../../_images/b260a6182530905017d5243cd0c5a841346940abb27c6c135099e0d3bd001d46.png

Best Practices#

Choose base to balance readability and density; 0.25 (π/4) is a good starting point.
Use latex=True in publication-quality figures for better typography.
Keep denominator modest (4–8) to avoid overly complex labels.
Apply formatters to the correct axis object (ax.xaxis vs ax.yaxis).

Troubleshooting & FAQs#

Labels show decimals like 1.1π instead of fractions → increase denominator; decimals are used when a clean fraction is not close.
Tiny values display as 0 → values with |x/π| < 1e-10 are treated as zero to reduce noise.
Ticks not as expected → ensure axis limits include multiples of π and that the locator/formatter are set on the intended axis.

API Cheat Sheet#

from faninsar.plots import PiFormatter, PiLocator, setup_phase_axis
import matplotlib.pyplot as plt

# X-axis: π/2 spacing, plain text
ax = plt.subplots(figsize=(4, 2))[1]
ax.xaxis.set_major_locator(PiLocator(base=0.5))
ax.xaxis.set_major_formatter(PiFormatter(denominator=4, latex=False))
plt.close()

# Y-axis: π/4 spacing, LaTeX labels
ax = plt.subplots(figsize=(4, 2))[1]
setup_phase_axis(ax.yaxis, base=0.25, denominator=8, latex=True)
plt.close()
